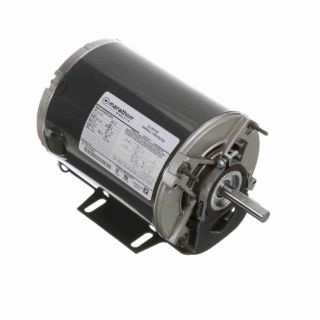

H170 MAR

Name: H170 MAR
Brand: Marathon Electric Motors
SKU: H170 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

H170

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

5KH36KN114X

Shaft extension 1-7/8" long by 1/2" diameter Variable torque on two speed ratings Heavy gauge steel frame and base Ball bearings

C Dim (IN):	10.38
CE:	N
Connection Drawing Number:	52A105385AA
Country of Origin:	Mexico
CSA:	Y
Current:	3.4
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	50.5
Electrical Type:	Split Phase
Enclosure Type:	Drip Proof
Frame Length (IN):	6.22
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	Z
Frame Type:	48Z
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	1/6-1/18
Insulation Class:	B
KVA Code:	R
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Resilient Base
Number of Poles:	4
Number of Speeds:	2
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	52A101908P5
Phases:	1
Power Factor:	0
Power Rating (HP):	0.17
Power Rating (kW):	0.13
Rotation:	Clockwise/Counterclockwise
Service Factor:	1.35
Shaft Diameter (IN):	0.5
Shaft Extension:	1.88
Speed:	1725/1140
Speed Max:	1725
Starting Type:	SM
Thru-bolts Extension:	0
Type of Overload Protector:	AUTO
UL:	Recognized
Voltage:	115
