H180 MAR

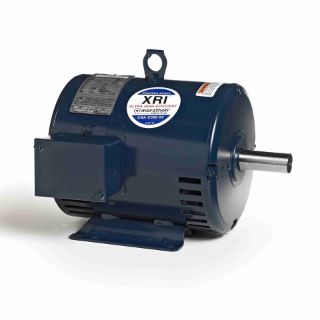

Picture of H180 MAR

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

H180

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

143TTDR5401

Features

Motor will accept a C-face kit 56H, 143T, and 145T combination base with 12 mounting holes F1 mounting only, cannot reassemble to F2

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	11.49
CE:	Y
Connection Drawing Number:	A-EE7308
Country of Origin:	United States of America
CSA:	Y
Current:	3.0/1.5
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	64
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	7.56
Frame Material:	Rolled Steel
Frame Size:	143
Frame Suffix:	T
Frame Type:	143T
Frequency:	60
Harmonized Tariff Code:	8501.51.4040
HP:	0.50
Insulation Class:	B
IP Code:	22
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	8
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100085-756
Phases:	3
Power Factor:	54.7
Power Rating (HP):	0.50
Power Rating (kW):	0.37
Resistance Main:	40.4
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	2.28
Shaft Type:	T
Speed:	835
Speed Max:	835
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460

Resources

Engineering Drawing Spec Sheet
