H186B MAR

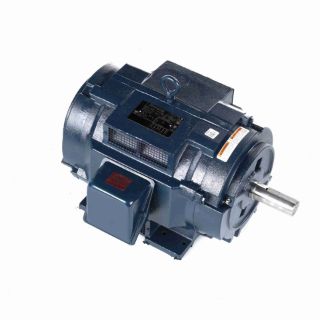

Picture of H186B MAR

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

H186B

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

254TTDN16101

Features

Motor not will accept a C-face kit See XRI® Dripproof in Premium Efficiency section for NEMA Premium efficiencies

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	22.87
CE:	Y
Connection Drawing Number:	A-EE7308
Country of Origin:	United States of America
CSA:	Y
Current:	15.0/7.5
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	88.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	12.75
Frame Material:	Cast Iron
Frame Size:	254
Frame Suffix:	T
Frame Type:	254T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	5
Insulation Class:	F
IP Code:	22
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	8
Number of Speeds:	1
ODE Bearing Size:	6208
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS208148-1275
Phases:	3
Power Factor:	70
Power Rating (HP):	5
Power Rating (kW):	3.7
Resistance Main:	2.305
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.625
Shaft Extension:	4.19
Shaft Type:	T
Speed:	875
Speed Max:	875
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
