H188 MAR

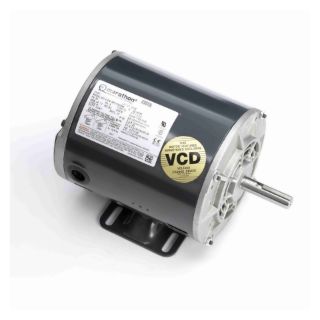

Picture of H188 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
284TTDP7101
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

8-Pole Continuous-Duty

Description

Marathon® AC Motor, 8-Pole Continuous-Duty, General Purpose AC Motors Application, Inverter Ready Special Features, 10 hp, 230/460 VAC, 32/16 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, Drip-Proof Enclosure, 284T Frame, 1.88 in Dia x 4.82 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 77.5 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Cast Iron, 23.49 in L x 18.15 in W x 16.23 in H Dimensions

Application

For use on variable frequency drives

Standards

CE | CSA Certified | EISA Compliant | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:32/16 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:23.49 in L x 18.15 in W x 16.23 in H
Enclosure Type:Drip-Proof
Frame:284T
Frequency Rating:60 Hz
Horsepower:10 hp
Insulation Class:Class B
Material:Cast Iron
Mounting Type:Rigid Base
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:1.88 in Dia x 4.82 in L
Speed:1760 rpm
Temperature Rating:40 deg C
Torque Rating:77.5 ft-lb
Voltage Rating:230/460 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
10 HP
Speed Rating
870
Type
Squirrel Cage Induction Run
Voltage Rating
230/460 V
