H189A MAR

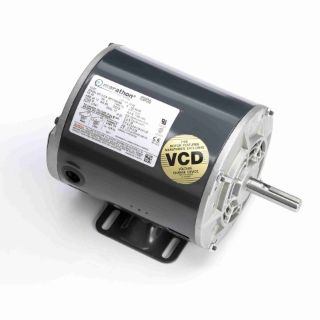

Picture of H189A MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
H189A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

286TTDN14101

Features

EISA compliant efficiencies, as noted Ball bearings (except where noted ) NEMA Service Factors Will accept C-Face Kits, see Accessories Section (except as noted) UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:F1/F2 Capable
C Dim (IN):26.81
CE:Y
Connection Drawing Number:A-EE7308
Country of Origin:United States of America
CSA:Y
Current:42.0/21.0
DE Bearing Size:6311
DE Bearing Type:Ball
Duty:Continuous
Efficiency:89.5
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):15.12
Frame Material:Cast Iron
Frame Size:286
Frame Suffix:T
Frame Type:286T
Frequency:60
Harmonized Tariff Code:8501.52.4000
HP:15
Insulation Class:F
IP Code:12
KVA Code:G
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:B
Number of Poles:8
Number of Speeds:1
ODE Bearing Size:6210
ODE Bearing Type:Ball
Outline Drawing Number:B-SS207890-1512
Phases:3
Power Factor:76
Power Rating (HP):15
Power Rating (kW):11.2
Resistance Main:.685
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):1.875
Shaft Extension:4.62
Shaft Type:T
Speed:870
Speed Max:870
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:230/460

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
15 HP
Speed Rating
870
Type
Squirrel Cage Induction Run
Voltage Rating
230/460 V
