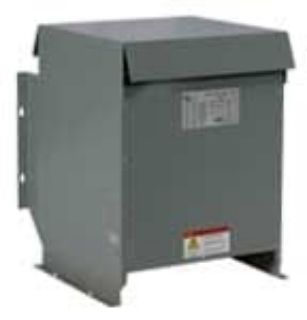

Actual Product May Vary From Image

H1EM015PK30 HMD

Name: H1EM015PK30 HMD
Brand: Hammond Power Solutions
SKU: H1EM015PK30 HMD
Availability: OutOfStock

HPS Centurion® H1EM015PK30 Energy Efficient Harmonic Mitigating Transformer, 600Y VAC Primary, 480Y/277 VAC Secondary, 15 kVA Power Rating, 60 Hz, 3 Phase

Manufacturer: Hammond Power Solutions

Manufacturer part number: H1EM015PK30

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

HPS Centurion®

Type

Energy Efficient

Description

HPS Centurion® energy efficient harmonic mitigating distribution transformers are rated for 600 VAC and below. Typical applications of severe non-linear loading conditions include data centers, internet service providers, telecom sites, call centers, broadcast centers, etc. Energy efficient harmonic mitigating transformers with zero sequence flux cancellation technology, is specifically designed to treat the harmonics generated by computer equipment and other non-linear, power electronic loads. Superior to K-rated and conventional transformers in reducing voltage distortion (flat topping) and power losses due to current harmonics created by 1-phase, non-linear loads such as computer equipment. Combining zero sequence flux cancellation with phase shifting treats 3rd, 5th, 7th, 9th, 15th, 17th and 19th, harmonics within its secondary windings.

HPS Centurion® Harmonic Mitigating Transformer, Energy Efficient, 600Y VAC Primary, 480Y/277 VAC Secondary, 15 kVA Power, 60 Hz Frequency, 3 ph, -30 deg Zigzag/Lug/Pad Connection, Floor/Wall Mounting, 220 deg C Insulation, NEMA 3R Enclosure, 30 to 40 deg C, 97 % Efficiency, 20.2 in L x 19.38 in W x 21.5 in H Dimensions

Application

For data centers, internet service providers, telecom sites, call centers, broadcast centers, mitigate, cancel harmonics without filters to improve power quality for non-linear loads

Standards

RoHS Compliant | UL File No. E112313 | CSA File No. LR3902 | CE Marked

Features

Meets DOE 10 CFR Part 431 (TP1) and CSA C802.2 and Canadian energy efficiency regulations SOR/94-651 (and/or CSA C802.2) efficiencies at an operating range from 35% to 65% of rated load and under a non-linear load profile up to K20 in an operating range from 35% to 50%
Prevents voltage flat topping caused by non-linear loads
Reduces upstream harmonic currents
Eliminates transformer overheating and high operating temperatures
Eliminates primary winding circulating current
Saves energy by reducing harmonic losses
Maintains high energy efficiency even under non-linear loading conditions
Electrostatic shielding for high frequency noise attenuation
Lowers voltage distortion to prevent premature equipment failure
Restores ride through capability of computer equipment
Treats power quality harmonic issues which K-rated transformers do not address
Suitable for high K-factor loads
Reduces current distortion at UPS, generator or utility service
Improves upstream total power factor
Electrostatic shield and a 200% rated neutral in an indoor/outdoor rated enclosure

Specifications

Connection Type:	-30 deg Zigzag/Lug/Pad
Dimensions:	20.2 in L x 19.38 in W x 21.5 in H
Efficiency:	97 %
Enclosure Type:	NEMA 3R
Frequency Rating:	60 Hz
Insulation:	220 deg C
Mounting Type:	Floor/Wall
Phase:	3
Power Rating:	15 kVA
Primary Voltage:	600Y VAC
Secondary Voltage:	480Y/277 VAC
Temperature Rating:	30 to 40 deg C
