Actual Product May Vary From Image

H20LW RBC

Name: H20LW RBC
Brand: Roller Bearing Corporation
SKU: H20LW RBC
Price: 44.28 USD
Availability: InStock

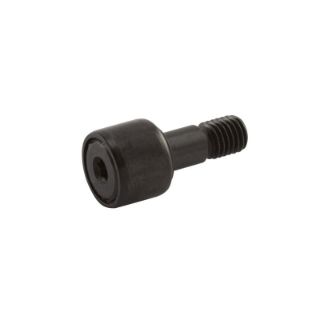

RBC® HexLube® H20LW H-LW Needle Roller Cylindrical Cam Follower, 5/8 in Dia x 0.438 in W Roller, 5/16 in Dia x 3/4 in L Stud, Chrome Steel Roller

Manufacturer: Roller Bearing Corporation

Manufacturer part number: H20LW

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
6	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$44.28

Qty:

Product Details

Brand Name

RBC®

Type

Needle Roller

Description

Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.

RBC® HexLube® Cylindrical Cam Follower, Needle Roller, Series: H-LW, 5/8 in Roller Dia, 0.438 in Roller Width, 5/16 in Stud Dia, 3/4 in Stud Length, 5/16-24 UNF-2A, 0.312 in Thread Length, 970 lb Dynamic/2500 lb Static, 5000 rpm Maximum, 250 deg F, Heavy Duty Stud, Sealed Closure, Hex, Chrome Steel Roller, Chrome Steel Stud, Black Oxide

Application

Material Handling, Turntable Mounting, Lift Trucks and Textile Machinery

Standards

ANSI/ABMA Standard 11 | ASPR | CAS | DFAR | FAR Standards

Features

Inventory reduction of about 50%
Allows relubrication in tight spots or when stud access is limited
HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
Double sealed to keep grease in and contaminants out

Specifications

Closure Type:	Sealed
Country of Origin:	US
Finish:	Black Oxide
Head Type:	Hex
Load Capacity:	970 lb Dynamic/2500 lb Static
Maximum Speed:	5000 rpm
Roller Diameter:	5/8 in
Roller Material:	Chrome Steel
Roller Width:	0.438 in
Series:	H-LW
Stud Diameter:	5/16 in
Stud Length:	3/4 in
Stud Material:	Chrome Steel
Stud Type:	Heavy Duty
Temperature Rating:	250 deg F
Thread Length:	0.312 in
Thread Size:	5/16-24 UNF-2A
