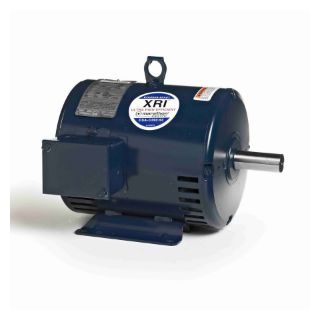

H604 MAR

Name: H604 MAR
Brand: Marathon Electric Motors
SKU: H604 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

145TTDR5327

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Marathon®

Type

4-Pole Continuous Duty

Description

Marathon® AC Motor, 4-Pole Continuous Duty, General Purpose AC Motors Application, Inverter Ready Special Features, 1.5 hp, 200 to 208 VAC, 5.5 to 4.9 A, 60 Hz Frequency, 3 ph, 1740 rpm Speed, Drip-Proof Enclosure, 145T Frame, 0.88 in Dia x 2.28 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 5.7 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10.99 in L x 8.52 in W x 6.72 in H

Application

For use on variable frequency drives

Standards

CE | CSA Certified | EISA Compliant | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:	5.5 to 4.9 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	10.99 in L x 8.52 in W x 6.72 in H
Enclosure Type:	Drip-Proof
Frame:	145T
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.28 in L
Speed:	1740 rpm
Temperature Rating:	40 deg C
Torque Rating:	5.7 ft-lb
Voltage Rating:	200 to 208 VAC
