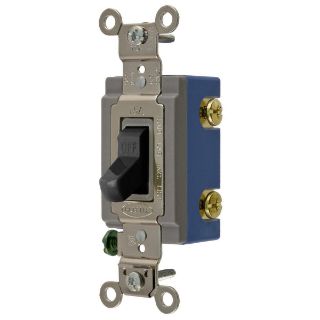

Actual Product May Vary From Image

HBL1201BK HWD

Name: HBL1201BK HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL1201BK HWD
Price: 20.15 USD
Availability: OutOfStock

Wiring Device-Kellems HBL® HBL1201BK 2-Position Extra Heavy Duty Industrial Grade Standard Toggle Switch, 120/277 VAC, 15 A, 4155 W, 1/2 to 2 hp Power Rating

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL1201BK

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$20.15

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

2-Position Extra Heavy Duty Industrial Grade Standard

Description

Wiring Device-Kellems HBL® Toggle Switch, 2-Position Extra Heavy Duty Industrial Grade Standard, 120/277 VAC, 15 A, 4155 W, 1/2 to 2 hp Power, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoset, Black, Environmental Conditions: -40 to 75 deg C Temperature, 4.06 in H x 1.31 in W x 1.87 in D Dimensions

Application

General Purpose AC and Indoor Applications

Standards

Features

Abuse resistant nylon toggle
Large brass binding head screws with deep slots
Strip gauge for accurate wiring
One piece design engineered thermoset base for superior heat dissipation
One piece design high impact resistant thermoplastic front for heavy duty industrial environments
Stainless steel automatic grounding clip assures grounding continuity between mounting strap and metal wall box
One piece bridge with integral grounding terminal with #8 brass screw allows compliance to NEC
Steel nickel plated mounting strap provides a superior corrosion resistant finish
Thread cleaning captive mounting screw
Prominent amperage marking on mounting strap allows easy identification of rating
Back wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailing
Elastomer rocker assures quiet operation and precise timing
Permanently lubricated assembly provides long life and trouble free operation
One piece rivetless copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
Large silver alloy contacts reduce contact erosion and prevent welding, providing long life

Specifications

Actuator:	Toggle
Amperage Rating:	15 A
Color:	Black
Country of Origin:	CN
Dimensions:	4.06 in H x 1.31 in W x 1.87 in D
Environmental Conditions:	-40 to 75 deg C Temperature
Material:	Thermoset
Mounting:	Threaded
Number of Poles:	1
Operating Cycles:	50000 Cycles
Power Rating:	4155 W, 1/2 to 2 hp
Terminal Type:	Back/Side Wire
Voltage Rating:	120/277 VAC
