HBL1221 HWD

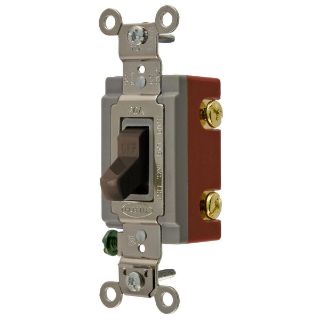

Wiring Device-Kellems HBL® HBL1221 2-Position Extra Heavy Duty General Purpose Industrial Grade Standard Toggle Switch, 120 to 277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact
Manufacturer part number: HBL1221
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$32.34
This product has a minimum quantity of 10

Product Details

Brand Name

Wiring Device-Kellems

Type

2-Position Extra Heavy Duty General Purpose Industrial Grade Standard

Alternate Supplier #

Grainger - 1X970

Description

Wiring Device-Kellems HBL® Toggle Switch, 2-Position Extra Heavy Duty General Purpose Industrial Grade Standard, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, 50000 cycles Operating Cycles, Nylon Toggle/Thermoset Body, Brown, Environmental Conditions: -40 to 75 deg C, 4.06 x 1.31 x 1.87 in

Application

Industrial and General Purpose Applications

Standards

UL 20 | CSA Certified | NEMA WD1 | RoHS Compliant

Features

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
  • 14 to 10 AWG solid and stranded copper wire size
  • 1 hp at 120 VAC, 2 hp at 208/240/277 VAC
  • Nylon toggle
  • Positive snap action

Specifications

Actuator:Toggle
Amperage Rating:20 A
Color:Brown
Contact Configuration:2-Position
Country of Origin:CN
Dimensions:4.06 in H x 1.31 in W x 2.93 in D
Environmental Conditions:-40 to 75 deg C
Material:Nylon Toggle/Thermoset Body
Mounting:Threaded
Number of Poles:1
Operating Cycles:50000 Cycles
Power Rating:2 hp, 5540 W
Series:HBL®
Terminal Type:Back/Side Wire
Voltage Rating:120 to 277 VAC
