HBL1221BK HWD

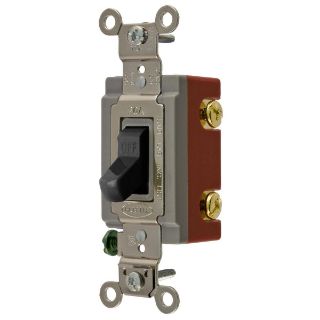

Picture of HBL1221BK HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL1221BK
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$35.62 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Extra Heavy Duty Standard

Alternate Supplier #

Grainger - 4D271

Description

Wiring Device-Kellems HBL® AC Toggle Switch, Extra Heavy Duty Standard, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Thermoset, Black, Environmental Conditions: -40 to 75 deg C, 4.06 x 1.31 x 1.87 in

Application

General Purpose, Industrial and Indoor Dry Environment

Standards

CSA Certified | UL94 V-2 Flammability Rating | UL 20 | Federal Specification W-S-896 | NEMA WD1

Features

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
  • 14 to 10 AWG solid and stranded copper wire size
  • 1 hp at 120 VAC, 2 hp at 208/240/277 VAC
  • Nylon toggle
  • Positive snap action

Specifications

Actuator:Toggle
Amperage Rating:20 A
Color:Black
Contact Configuration:2-Position
Country of Origin:CN
Dimensions:4.06 in H x 1.31 in W x 2.93 in D
Environmental Conditions:-40 to 75 deg C
Material:Thermoset
Mounting:Threaded
Number of Poles:1
Operating Cycles:50000 Cycles
Power Rating:2 hp, 5540 W
Series:HBL®
Terminal Type:Back/Side Wire
Voltage Rating:120 to 277 VAC
