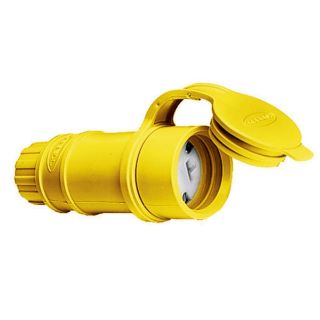

Picture of HBL15W33 HWD
Actual Product May Vary From Image

HBL15W33 HWD

Wiring Device-Kellems Elastogrip® HBL15W33 Female Grounding Insulated Standard Watertight Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL15W33
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$53.51

Product Details

Brand Name

Wiring Device-Kellems

Type

Female Grounding Insulated Standard Watertight

Alternate Supplier #

Grainger - 3D011

Description

Wiring Device-Kellems Elastogrip® Straight Blade Connector, Female Grounding Insulated Standard Watertight, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial/Industrial Grade, IP20 Enclosure, 0.3 to 0.655 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 3 in L x 1.61 in W

Standards

UL 498 File No. E1706 | UL94 HB Flammability Rating | CSA C22.2 No. 42/280 | NEMA WD1/WD5 WD6

Features

  • #8-32 brass, multiple drive terminal screw
  • Copper alloy power contacts
  • Withstands 2000 VAC minimum dielectric voltage
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
  • 14 to 10 AWG copper stranded or solid wire size
  • Integral weatherproofing shroud seals connection between plug and connector
  • Nylon compression nut keeps water and dust from getting into the body around the cord
  • 14 to 12 AWG wire size
  • Cord mounted

Specifications

Amperage Rating:20 A
Color:Yellow
Cord Diameter:0.3 to 0.655 in
Country of Origin:US
Dimensions:3 in L x 1.61 in W
Enclosure:IP20
Grade:Commercial/Industrial
Horsepower:1 hp
Material:Composite
NEMA Rating:5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
