HBL15W47A HWD

Name: HBL15W47A HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL15W47A HWD
Price: 43.44 USD
Availability: InStock

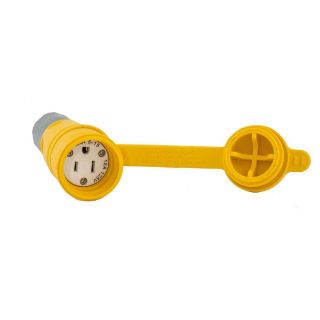

Wiring Device-Kellems HBL15W47A Female Grounding Insulated Watertight Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL15W47A

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
27	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$43.44

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Female Grounding Insulated Watertight Cord Mount

Alternate Supplier #

Grainger - 39AW22

Description

Wiring Device-Kellems Straight Blade Connector, Female Grounding Insulated Watertight Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12 Enclosure, 3/8 to 5/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 1.85 in Dia x 4.42 in L

Standards

ANSI Specified | UL 498 | CSA C22.2

Features

Smooth body design minimizes collection points simplifying the wash down process
Strain relief nut always seals on the body, minimizing debris collection
Stainless steel hardware and corrosion resistant connection points
White nylon contact carrier
Clear polycarbonate terminal retainer
Nickel plated brass contacts
White nylon core
Black elastomer bushing and cone seal
Nickel plated brass terminal screws
2500 VAC dielectric voltage
Cord mounted

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	3/8 to 5/8 in
Country of Origin:	CN
Dimensions:	1.85 in Dia x 4.42 in L
Enclosure:	NEMA 4/4X/6/6P/12
Grade:	Commercial/Industrial
Horsepower:	1/2 hp
Material:	Elastomer/Composite
NEMA Rating:	5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
