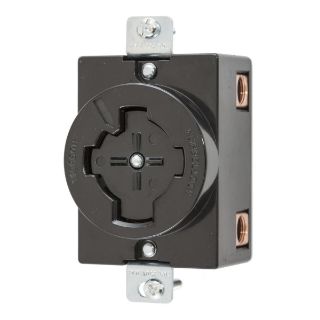

Actual Product May Vary From Image

HBL20403 HWD

Name: HBL20403 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL20403 HWD
Price: 212.46 USD
Availability: OutOfStock

Wiring Device-Kellems Hubbellock® HBL20403 HBL® Grounding Heavy Duty Multi-Phase Single Locking Receptacle With Stainless Steel Plate, 250/600 VAC/VDC, 20/30 A, 3 Poles, 4 Wires, Black

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL20403

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$212.46

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Grounding Heavy Duty Multi-Phase Single

Alternate Supplier #

Grainger - 3D015

Description

Wiring Device-Kellems Hubbellock® Locking Receptacle, Grounding Heavy Duty Multi-Phase Single, Series: HBL®, 250/600 VAC/VDC, 20/30 A, 3 Poles, 4 Wires, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite, Black, 3.28 in L x 1.94 in W x 1.75 in D

Standards

UL 498 | CSA Certified

Features

Steel pressure screw zinc plate terminal screw, ground screw
Black polyester body contact carrier
0.031 in brass contact spring, ground contact
Steel, zinc plated mounting screw, 0.062 in steel zinc plated bridge mounting strap
Black thermoset cover top, base
Withstands 2000 VAC minimum dielectric voltage
Spring loaded safety shutter contains arcing when mating or unmating devices under load
Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
Thermoset molded housing provides maximum heat resistance
Bronze contacts
Terminals identified in accordance with UL 498 and CSA terminal identification
UL94 V-0 for receptacles and inlets, HB or better for plugs and connectors flammability
IP30 suitability moisture resistance
Auto ejects improperly made connection
Flush mounted
Screw mounting
12 to 10 AWG wire size
Non-NEMA rating

Specifications

Amperage Rating:	20/30 A
Color:	Black
Country of Origin:	US
Dimensions:	3.28 in L x 1.94 in W x 1.75 in D
Enclosure:	NEMA 4/4X/12/IP30
Grade:	Industrial
Material:	Composite
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	250/600 VAC/VDC
