HBL20444B HWD

Name: HBL20444B HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL20444B HWD
Price: 378.06 USD
Availability: OutOfStock

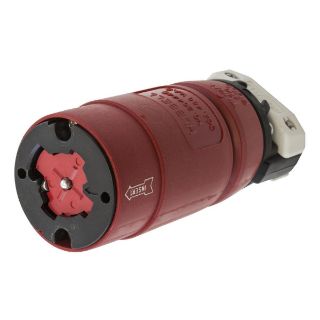

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL20444B

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$378.06 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Female Heavy Duty Insulated Non-Grounding Non-Shrouded Standard

Alternate Supplier #

Grainger - 3D018

Description

Wiring Device-Kellems Hubbellock® Locking Connector, Female Heavy Duty Insulated Non-Grounding Non-Shrouded Standard, Series: HBL®, 480 VAC, 30 A, 3 Poles, 3 Wires, Industrial Grade, IP20 Enclosure, 0.7 to 1.2 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 16 in Dia x 6 in L

Standards

UL 498 | CSA Certified

Features

Grounding style connector
Standard wiring style
Zinc plated steel terminal ground, cord clamp and body holding screw Rynite body contact carrier, bronze contact spring and ground contact
Spring loaded safety shutter contains arcing when mating or un-mating devices under load
Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
Cord mounted
Insulated body
12 to 8 AWG wire size
Thermoplastic polyester interior
Non-NEMA rating

Specifications

Amperage Rating:	30 A
Color:	Red
Cord Diameter:	0.7 to 1.2 in
Country of Origin:	PR
Dimensions:	16 in Dia x 6 in L
Enclosure:	IP20
Grade:	Industrial
Material:	Composite
Number of Poles:	3
Number of Wires:	3
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	480 VAC
