HBL20445B HWD

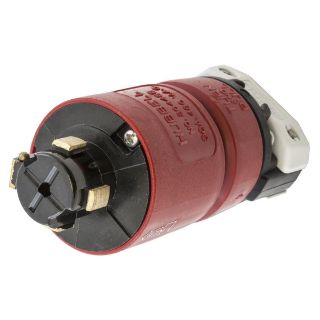

Picture of HBL20445B HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL20445B
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$256.21 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Heavy Duty Male Cord Mount

Alternate Supplier #

Grainger - 3D019

Description

Wiring Device-Kellems Hubbellock® Locking Plug, 3-Phase Grounding Heavy Duty Male Cord Mount, 480 VAC, 30 A, 3 Pole, 4 Wires, Industrial Grade, 0.63 to 1.2 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.33 x 0.94 x 5.63 in

Standards

UL 498 | CSA Certified

Features

  • Black thermoset blade holder
  • Glass reinforced PET cord clamp
  • Brass blade
  • Copper lug terminals with steel set screws terminal screw and ground screw
  • Stainless steel, multi-drive cord clamp screw, body holding screws
  • Withstands 2000 VAC minimum dielectric voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
  • Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation
  • 10 to 8 AWG wire size
  • Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
  • IP20 moisture resistance
  • Molded male contacts are resistant to damage and provide a consistently positive connection
  • Insulated non-metallic housing enhances safety and abuse resistance
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • 3-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
  • Auto ejects improperly made connection
  • Non-NEMA rating

Specifications

Amperage Rating:30 A
Color:Black/White
Cord Diameter:0.63 to 1.2 in
Country of Origin:PR
Dimensions:2-21/64 in Dia x 5-5/8 in L
Grade:Industrial
Material:Composite/Nylon
Number of Poles:3
Number of Wires:4
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:480 VAC
