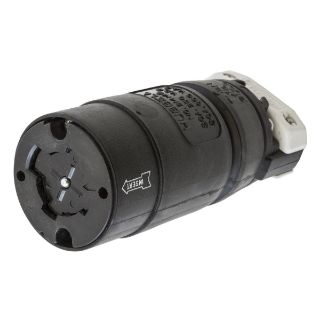

Picture of HBL21414B HWD
Actual Product May Vary From Image

HBL21414B HWD

Wiring Device-Kellems Hubbellock® HBL21414B Female Heavy Duty Insulated Non-Grounding Standard Locking Connector, 600/250 VAC/VDC, 30 A, 3 Poles, 3 Wires, Black
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL21414B
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$299.94

Product Details

Brand Name

Wiring Device-Kellems

Type

Female Heavy Duty Insulated Non-Grounding Standard

Alternate Supplier #

Grainger - 5C993

Description

Wiring Device-Kellems Hubbellock® Locking Connector, Female Heavy Duty Insulated Non-Grounding Standard, Series: HBL®, 600/250 VAC/VDC, 30 A, 3 Poles, 3 Wires, Industrial Grade, IP30 Enclosure, 0.63 to 1.2 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 2.44 in Dia x 5.96 in L

Standards

UL 498 | CSA C22.2 No. 42

Features

  • Spring loaded safety shutter contains arcing when mating or unmating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Three piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
  • Rynite cord clamp
  • Steel pressure screw zinc plate terminal screw, ground screw
  • Steel, zinc plated cord clamp screw, body holding screw
  • Black Rynite body contact carrier
  • Bronze contact spring, ground contact
  • 30 A at 600 VAC, 20 A at 250 VDC electrical rating
  • 20 A, 12 AWG, 30 A 10 AWG wire size
  • Withstands 2000 VAC minimum dielectric voltage
  • Non-NEMA rating
  • Cord mounted
  • 12 to 8 AWG wire size
  • Thermoplastic polyester interior

Specifications

Amperage Rating:20/30 A
Color:Black
Cord Diameter:0.63 to 1.2 in
Country of Origin:US
Dimensions:2.44 in Dia x 5.96 in L
Enclosure:IP30
Grade:Industrial
Material:Composite
Number of Poles:3
Number of Wires:3
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:600 VAC/250 VDC
