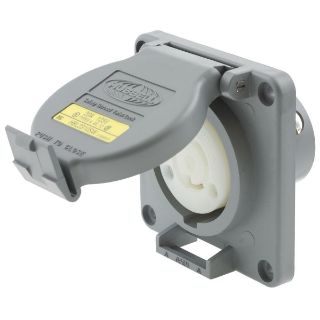

HBL2310SW HWD

Name: HBL2310SW HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2310SW HWD
Price: 136.23 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL2310SW

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$136.23 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Heavy Duty Shrouded Single Standard Watertight Screw Mount

Alternate Supplier #

Grainger - 4CT63

Description

Wiring Device-Kellems Twist-Lock® Locking Receptacle, 1-Phase Grounding Heavy Duty Shrouded Single Standard Watertight Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.69 in

Standards

RoHS Compliant | UL 498 | CSA C22.2 No. 42 | Federal Specification W-C-596 | NEMA WD1/WD5

Features

Shrouded watertight, NEMA L5-20R configuration
Clear polycarbonate terminal retainer, impact modified PBT housing material
Steel, nickel plated 0.08 in curved, scalloped terminal clamp material
#10-32 brass (white finish on neutral screw when used) multiple drive terminal screw, #10-32 brass (green finish) ground screw
Natural white nylon body contact carrier material
0.031 in brass contact spring, spring binding plate and ground contact material
Stainless steel 302/304 multi-drive mounting screw material, steel rivet material
Molded in or stamped on ratings
2000 VAC minimum dielectric withstand voltage
Certified for current interrupting at full rated current
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
14 to 8 AWG copper wire size
Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
VO per UL94 or CSA 22.2 NO 0.6 flammability
Type 4/4X/12, IP66 suitability moisture resistance
Closed cell neoprene foam flange gasket material
Closed cell neoprene foam lid gasket material
Stainless steel 302/304 cover hinge pin material
Gray Valox™ housing and flange material, stainless steel 302/304 cover spring material
UL type 4X environmental seal while in use and when closed, high impact, thermoplastic housing for heavy duty industrial environments, alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected

Specifications

Amperage Rating:	20 A
Color:	Gray/White
Country of Origin:	US
Dimensions:	3.75 in H x 3.75 in W x 2.69 in D
Enclosure:	NEMA 4/4X/12/IP66
Grade:	Industrial
Horsepower:	1 hp
Material:	Composite/Thermoplastic
NEMA Rating:	L5-20R
Number of Poles:	2
Number of Wires:	3
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
