HBL2311M15 HWD

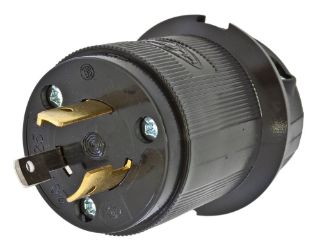

Picture of HBL2311M15 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL2311M15
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request
This product has a minimum quantity of 30

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Male

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Grounding Male, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA L5-20P, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Brass/Clear Polycarbonate/Composite/Nylon, Black/White, 2.26 in Dia x 2.75 in L Dimensions

Application

Dry Locations, Power Connection and Indoor Applications

Standards

UL 498 | CSA C22.2 File No. 42 | UL 94-HB Flammability Rating | Federal Specification W-C-596 | RoHS Compliant | ARRA Compliant | Buy American Act Compliant

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Color model

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.36 to 0.93 in
Country of Origin:US
Dimensions:2.26 in Dia x 2.75 in L
Enclosure:IP20
Grade:Industrial
Horsepower:1 hp
Material:Brass/Clear Polycarbonate/Composite/Nylon
NEMA Rating:NEMA L5-20P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
