HBL2320SW HWD

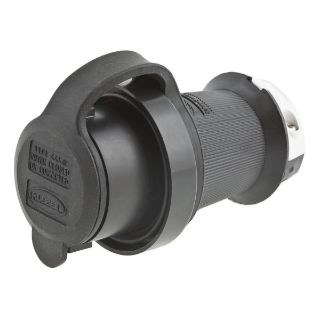

Picture of HBL2320SW HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL2320SW
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$136.23 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Standard Single Watertight

Alternate Supplier #

Grainger - 4CT71

Description

Wiring Device-Kellems Safety-Shroud® Twist-Lock® Locking Receptacle, 1-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.69 in

Application

Heavy Duty Industrial Shrouded Applications

Standards

UL 498 | CSA C22.2 No. 42, 0.17 | UL 94 Flammability Rating | Federal Specification W-C-596 | NEMA WD1/WD5 | RoHS Compliant

Features

  • UL type 4X environmental seal while in use and when closed
  • High impact, thermoplastic housing for heavy duty industrial environments
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Clear polycarbonate terminal retainer
  • 0.08 in steel, curved, scalloped, nickel plated terminal clamp, #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw, green finish multi-drive ground screw, steel, zinc plated multi-drive cord clamp screw arterial and body holding screw
  • Natural white nylon body contact carrier
  • 0.031 in brass contact spring and spring binding plate and ground contact
  • Stainless steel 302/304 multi-drive mounting screws
  • Steel zinc plated mounting screw
  • Withstands 2000 VAC minimum dielectric voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 14 to 8 AWG wire

Specifications

Amperage Rating:20 A
Color:Gray/White
Country of Origin:PR
Dimensions:3-3/4 in H x 3-3/4 in W x 1-1/2 in D
Enclosure:IP20
Grade:Industrial
Horsepower:2 hp
Material:Composite/Thermoplastic
NEMA Rating:L6-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
