HBL2323BK HWD

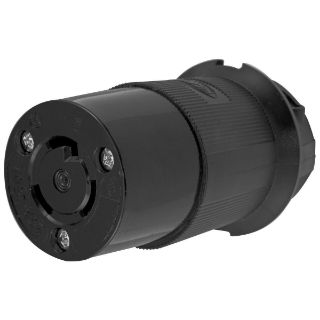

Picture of HBL2323BK HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL2323BK
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$44.68 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Female Grounding Heavy Duty Insulated Standard

Alternate Supplier #

Grainger - 1DJJ8

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Female Grounding Heavy Duty Insulated Standard, 250 VAC, 20 A, 2 hp, 2 Poles, 3 Wires, NEMA L6-20R, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 2.26 in L x 2.26 in W x 3.86 in H

Application

Dry Locations and Indoor Applications

Standards

RoHS Compliant | UL 498 | CSA C22.2 No. 42/0.6 | UL94HB Flammability Rating | Federal Specification W-C-596 | NEMA WD1/WD5

Features

  • All black ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • 12 to 10 AWG conductor
  • Indoor dry unless protected by additional mean environmental conditions
  • Cord mounted

Specifications

Amperage Rating:20 A
Color:Black
Cord Diameter:0.36 to 0.93 in
Country of Origin:PR
Dimensions:2.26 in L x 2.26 in W x 3.86 in H
Enclosure:IP20
Grade:Industrial
Horsepower:2 hp
Material:Composite
NEMA Rating:L6-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:250 VAC
