HBL2323SW HWD

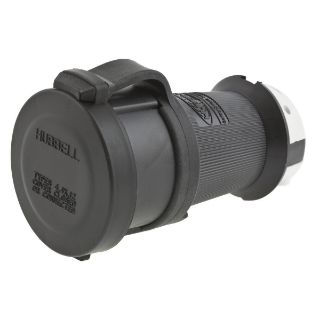

Picture of HBL2323SW HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL2323SW
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$123.03 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Female Grounding Shrouded Standard Watertight

Alternate Supplier #

Grainger - 4CT74

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Female Connector, Heavy Duty Isolated Grounding Shrouded Standard Sized Watertight Cord Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R/WD1/WD5 NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.57 x 2.57 x 4.4 in

Application

Heavy Duty Industrial Applications

Standards

RoHS Compliant | UL 498 | Federal Specification W-C-596 | CSA C22.2 No. 42

Features

  • UL type 4X environmental seal protects connection while in use
  • 1-piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
  • Closure cap is included for environmental seal when device is not in use
  • Superior cord grip design protects terminations from excess strain
  • White Valox® cord clamp, clear polycarbonate terminal retainer
  • 0.08 in steel nickel plated terminal clamp, #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw, green finish multi-drive ground screw, steel, zinc plated multi-drive cord clamp screw arterial and body holding screw
  • Natural white nylon body contact carrier
  • Brass contact spring and spring binding plate
  • 0.031 in brass ground contact
  • Withstands 2000 VAC minimum dielectric voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 20 A, 12 AWG terminal accommodation
  • Cord mounted
  • 12 to 10 AWG conductor

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.36 to 0.93 in
Country of Origin:PR
Dimensions:2.56 in Dia x 4.38 in L
Enclosure:NEMA 4/4X/12/IP66
Grade:Industrial
Horsepower:2 hp
Material:Composite
NEMA Rating:L6-20R/WD1/WD5
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:250 VAC
