HBL2325SW HWD

Name: HBL2325SW HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2325SW HWD
Price: 85.61 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL2325SW

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$85.61 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Standard Single Shrouded Watertight

Alternate Supplier #

Grainger - 4CT75

Description

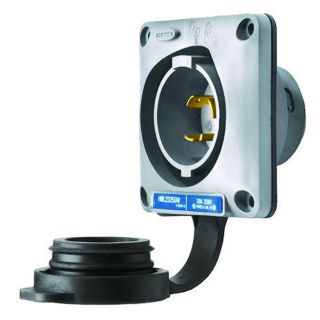

Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Flanged Inlet, 1-Phase Grounding Standard Single Shrouded Watertight, 250 VAC, 20 A, 2 Poles, 3 Wires, NEMA L6-20P, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Composite, Gray/White, 3-3/4 in H x 3-3/4 in W x 1-1/2 in D

Application

Extra Heavy Duty Industrial Applications

Standards

RoHS Compliant | CSA C22.2 No. 42/0.17 | Federal Specification W-C-596 | UL 498 | UL94 V-0 Flammability Rating

Features

1-piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
Closure cap is included for environmental seal when device is not in use
Catalog number and color coded voltage rating are visible even when in use
UL type 4X environmental seal protects connection while in use

Specifications

Amperage Rating:	20 A
Color:	Gray/White
Cord Diameter:	0.325 to 0.72 in
Country of Origin:	US
Dimensions:	3-3/4 in H x 3-3/4 in W x 1-1/2 in D
Enclosure:	IP66
Grade:	Industrial
Horsepower:	2 hp
Material:	Composite
NEMA Rating:	L6-20P
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
