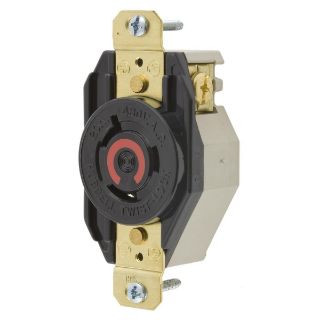

Actual Product May Vary From Image

HBL2340 HWD

Name: HBL2340 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2340 HWD
Price: 39.99 USD
Availability: OutOfStock

Wiring Device-Kellems Twist-Lock® HBL2340 1-Phase Heavy Duty Grounding Single Standard Locking Receptacle, 480 VAC, 20 A, 2 Poles, 3 Wires, Black

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL2340

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$39.99

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Heavy Duty Grounding Single Standard

Alternate Supplier #

Grainger - 5Z902

Description

Wiring Device-Kellems Twist-Lock® Locking Receptacle, 1-Phase Heavy Duty Grounding Single Standard, Series: HBL®, 480 VAC, 20 A, 5 hp, 2 Poles, 3 Wires, NEMA L8-20R, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Black, 3.28 in L x 1.7 in W x 1.23 in D

Standards

UL 498 | CSA C22.2 No. 0.6 | NEMA WD1/WD5

Features

Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
Face color coding by voltage facilitates locating and mating of proper devices
All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Flush mounted
Screw mounting
14 to 8 AWG wire size

Specifications

Amperage Rating:	20 A
Color:	Black
Country of Origin:	US
Dimensions:	3.28 in L x 1.7 in W x 1.23 in D
Grade:	Industrial
Horsepower:	3 hp
Material:	Composite/Thermoplastic
NEMA Rating:	L8-20R
Number of Poles:	2
Number of Wires:	3
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	480 VAC
