HBL2410M1 HWD

Name: HBL2410M1 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2410M1 HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL2410M1

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 100

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Flush Mount Heavy Duty Grounding Standard Single Screw Mount

Description

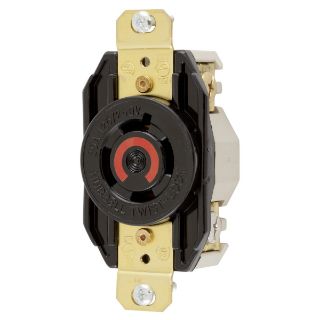

Wiring Device-Kellems Twist-Lock® Locking Receptacle, 1-Phase Flush Mount Heavy Duty Grounding Standard Single Screw Mount, 125/250 VAC, 20 A, 1 hp, 3 Pole, 4 Wires, L14-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Black, 1.23 in L x 2.37 in W x 2.37 in H

Application

Dry Locations and Indoor Applications

Standards

UL 498 | CSA C22.2 No. 42/0.17 | UL94 Flammability Rating | Federal Specification W-C-596 | NEMA WD1/WD5

Features

Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
Face color coding by voltage facilitates locating and mating of proper devices
All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems

Specifications

Amperage Rating:	20 A
Color:	Black
Country of Origin:	PR
Dimensions:	1.23 in L x 2.37 in W x 2.37 in H
Enclosure:	IP20
Grade:	Industrial
Horsepower:	1 hp
Material:	Thermoplastic
NEMA Rating:	L14-20R
Number of Poles:	3
Number of Wires:	4
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125/250 VAC
