HBL2413 HWD

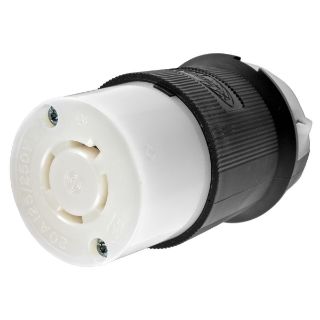

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2413 Female Heavy Duty Insulated Grounding Standard Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black/White
Manufacturer part number: HBL2413
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 0 1
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$61.00

Product Details

Brand Name

Wiring Device-Kellems

Type

Female Heavy Duty Insulated Grounding Standard

Alternate Supplier #

Grainger - 4A266

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Female Heavy Duty Insulated Grounding Standard, Series: HBL®, 125/250 VAC, 20 A, 3 Poles, 4 Wires, NEMA L14-20R, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.3 in Dia x 3.86 in L

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

  • Clear polycarbonate terminal retainer
  • White Valox® cord clamp
  • Steel nickel plated terminal clamp
  • Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
  • Steel zinc plated cord clamp screw, body holding screw
  • Natural white nylon body contact carrier material
  • 20 A, 12 AWG terminal accommodation
  • Withstands 2000 VAC dielectric voltage

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.35 to 1.15 in
Country of Origin:US
Dimensions:2.3 in Dia x 3.86 in L
Enclosure:IP20
Grade:Industrial
Material:Composite
NEMA Rating:L14-20R
Number of Poles:3
Number of Wires:4
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125/250 VAC
