HBL2420AR HWD

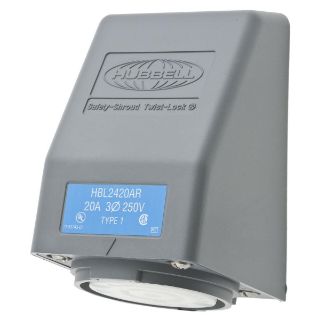

Picture of HBL2420AR HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL2420AR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$57.81 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Screw Mount

Alternate Supplier #

Grainger - 4CT92

Description

Wiring Device-Kellems Safety-Shroud® Twist-Lock® Locking Receptacle, 3-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Screw Mount, 250 VAC, 20 A, 3 hp, 3 Pole, 4 Wires, L15-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 4.77 x 2.85 x 3.14 in

Application

Heavy Duty Industrial Shrouded, Dry Locations and Indoor Applications

Standards

RoHS Compliant | UL 498 | CSA C22.2 No. 42/0.17 | UL94 V-2 Flammability Rating | Federal Specification W-C-596 | NEMA WD1/WD5

Features

  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments
  • 14 to 8 AWG wire

Specifications

Amperage Rating:20 A
Color:Gray/White
Country of Origin:PR
Dimensions:4.77 in L x 2.85 in W x 3.14 in H
Enclosure:IP20
Grade:Industrial
Horsepower:3 hp
Material:Composite/Thermoplastic
NEMA Rating:L15-20R
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
