HBL24300RKD HWD

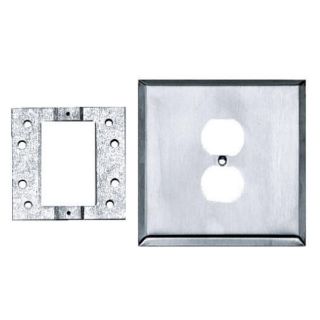

Picture of HBL24300RKD HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL24300RKD
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Explosion Proof Grounding Standard Sized Screw Mount

Alternate Supplier #

Grainger - 3D567

Description

Conversion kits for replacement of explosion proof receptacles listed above, with non-explosion proof receptacles, in the hospital areas formerly classified as hazardous locations and now classified non-hazardous locations due to the change from flammable anesthetizing gases to nonflammable anesthetizing gases.
Wiring Device-Kellems, HBL24300RKD, Duplex Explosion Proof Grounding Standard Sized Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Pole, 3 Wires, L5-20R NEMA Rating, Hospital Grade, IP30 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Black

Application

Hospital Use and Indoor Dry Environment

Standards

UL 498

Features

  • Conversion to straight blade duplex
  • Hazardous to non-hazardous location receptacle converter
  • Duplex retrofit kit accepts 20 A duplex straight blade hospital grade receptacles

Includes

Adapter Ring, Stainless Steel Wallplate

Specifications

Amperage Rating:20 A
Color:Black
Country of Origin:US
Enclosure:IP30
Grade:Hospital
Material:Thermoplastic
NEMA Rating:L5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:125 VAC
