HBL2430SW HWD

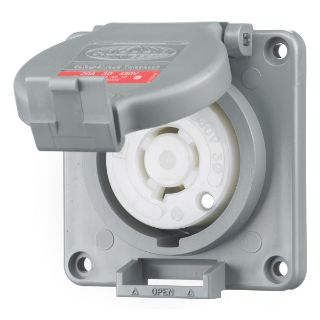

Picture of HBL2430SW HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL2430SW
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$140.45 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Heavy Duty Shrouded Single Standard Watertight

Alternate Supplier #

Grainger - 4CV04

Description

Wiring Device-Kellems Safety-Shroud® Twist-Lock® Locking Receptacle, 3-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.9 in

Standards

UL 498 | CSA C22.2 No. 42, 0.17, UL 94 Flammability Rating | Federal Specification W-C-596, NEMA WD1/WD5 | RoHS Compliant

Features

  • High impact, thermoplastic housing for heavy duty industrial environments
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Gray RPT housing/cover, clear polycarbonate terminal retainer, natural (white) nylon body contact carrier, steel, zinc plated drive screws, brass contacts, stainless steel lift-cover spring and pin
  • Withstands 2000 VAC minimum dielectric voltage
  • IP20 suitability moisture resistance
  • Screw mounting
  • 14 to 8 AWG wire size

Specifications

Amperage Rating:20 A
Color:Gray/White
Country of Origin:PR
Dimensions:3.75 in H x 3.75 in W x 2.9 in D
Enclosure:IP20
Grade:Industrial
Horsepower:5 hp
Material:Composite/Thermoplastic
NEMA Rating:L16-20R
Number of Poles:3
Number of Wires:4
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:480 VAC

Customers who bought this item also bought

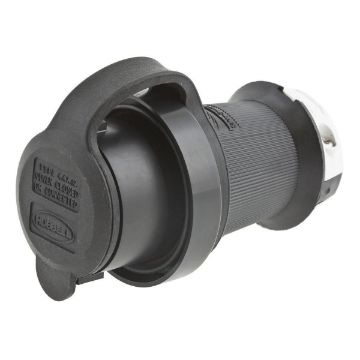

Picture of HBL2431SW HWD
