HBL2431SW HWD

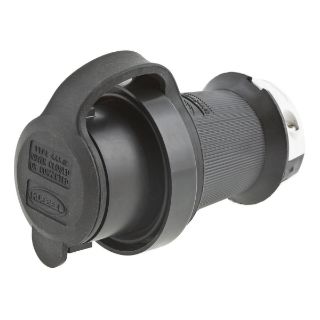

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2431SW 3-Phase Grounding Watertight Cord Mount Locking Plug, 480 VAC, 20 A, 3 Poles, 4 Wires, Black/White
Manufacturer part number: HBL2431SW
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$112.01

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Extra Heavy Duty Grounding Standard Sized Shrouded Watertight Male

Alternate Supplier #

Grainger - 4CV06

Description

Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Plug, 3-Phase Grounding Watertight Cord Mount, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.94 x 2.94 x 4.40 in

Application

Power Connection Applications

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

  • Impact resistant shroud protects blades against bending and breaking
  • Reduces exposure to arcing when connecting or disconnecting under load
  • Superior cord grip design protects terminations from excess strain
  • Natural white nylon blade holder
  • Clear polycarbonate terminal retainer
  • Brass blade, terminal screw and ground screw
  • Steel nickel plated terminal clamp
  • Steel, zinc plated cord clamp screw, body holding screw
  • #10-32 brass (Phillips/slotted/Robertson) terminal screw
  • Impact modified PBT cord clamp

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.35 to 1.15 in
Country of Origin:US
Dimensions:2.94 in L x 2.94 in W x 4.4 in H
Enclosure:NEMA 4/4X/12/IP66
Grade:Industrial
Horsepower:10 hp
Material:Composite
NEMA Rating:L16-20P
Number of Poles:3
Number of Wires:4
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:480 VAC
