Actual Product May Vary From Image

HBL2433 HWD

Name: HBL2433 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2433 HWD
Price: 62.88 USD
Availability: InStock

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2433 3-Phase Female Grounding Standard Heavy Duty Insulated Locking Connector, 480 VAC, 20 A, 3 Poles, 4 Wires, Black/White

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL2433

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	2	3
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$62.88

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Grounding Standard Heavy Duty Insulated

Alternate Supplier #

Grainger - 6A663

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, 3-Phase Female Grounding Standard Heavy Duty Insulated, Series: HBL®, 480 VAC, 20 A, 5 hp, 3 Poles, 4 Wires, NEMA L16-20R, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.33 in Dia x 3.86 in L

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

Superior cord grip design protects terminations from excess strain
Clear, funnel shaped wire entry for ease of termination
Integral dust shield protects wiring chamber from dust or contaminants
Clear polycarbonate terminal retainer
White Valox™ cord clamp
Steel nickel plated terminal clamp
Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
Steel zinc plated cord clamp screw, body holding screw
Natural white nylon body contact carrier
20 A 12 AWG wire size
Withstands 2000 VAC minimum dielectric voltage
Cord mounted
Insulated body
12 to 10 AWG wire size

Specifications

Amperage Rating:	20 A
Color:	Black/White
Cord Diameter:	0.35 to 1.15 in
Country of Origin:	US
Dimensions:	2.33 in Dia x 3.86 in L
Enclosure:	IP20
Grade:	Industrial
Horsepower:	5 hp
Material:	Composite
NEMA Rating:	L16-20R
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	480 VAC

Customers who bought this item also bought

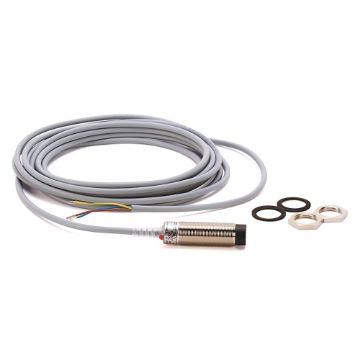

872CA10N18A2 AB
