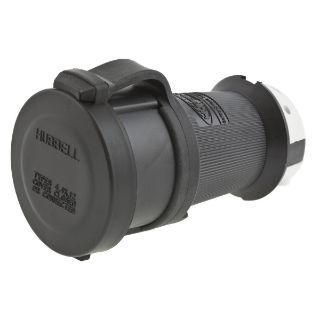

Actual Product May Vary From Image

HBL2433SW HWD

Name: HBL2433SW HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2433SW HWD
Price: 140.21 USD
Availability: OutOfStock

Wiring Device-Kellems Twist-Lock® HBL2433SW 3-Phase Female Grounding Heavy Duty Insulated Standard Shrouded Watertight Locking Connector, 480 VAC, 20 A, 3 Poles, 4 Wires, Black/White

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL2433SW

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$140.21

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Grounding Heavy Duty Insulated Standard Shrouded Watertight

Alternate Supplier #

Grainger - 4CV07

Description

Wiring Device-Kellems Twist-Lock® Locking Connector, 3-Phase Female Grounding Heavy Duty Insulated Standard Shrouded Watertight, Series: HBL®, 480 VAC, 20 A, 1/2 hp, 3 Poles, 4 Wires, NEMA L16-20R, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 4.38 in L x 2.75 in W

Application

Heavy Duty Industrial Applications

Standards

RoHS Compliant | CSA C22.2 No. 42/0.6 | Federal Specification W-C-596 | NEMA WD1/WD5 | UL 498

Features

UL type 4X environmental seal protects connection while in use
1-piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
Closure cap is included for environmental seal when device is not in use
Superior cord grip design protects terminations from excess strain
White Valox™ cord clamp
(2) 0.08 in steel to nickel plated terminal clamp
#10-32 brass (white finish on neutral screw when used) multiple drive terminal screw
Stainless steel, multi to drive cord clamp and body holding screws
Withstands 2000 VAC minimum dielectric voltage
Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
20 A 12 AWG wire size
Type 4/4X/12, IP66 suitability moisture resistance
Safety grade
12 to 10 AWG wire size
Cord mounted

Specifications

Amperage Rating:	20 A
Color:	Black/White
Cord Diameter:	0.35 to 1.15 in
Country of Origin:	US
Dimensions:	2.75 x 2.75 x 4.4 in
Enclosure:	IP66
Grade:	Industrial
Horsepower:	1/2 hp
Material:	Composite
NEMA Rating:	L16-20R
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	480 VAC
