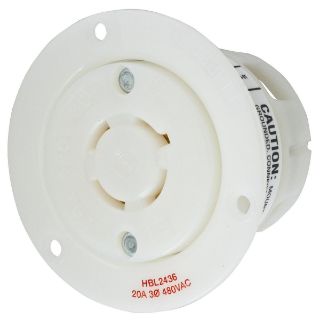

Actual Product May Vary From Image

HBL2436 HWD

Name: HBL2436 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2436 HWD
Price: 65.85 USD
Availability: InStock

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2436 3-Phase Flanged Grounding Single Screw Mount Locking Receptacle, 480 VAC, 20 A, 3 Poles, 4 Wires, White

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL2436

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	5
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$65.85

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Flanged Grounding Single Screw Mount

Alternate Supplier #

Grainger - 3D052

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Receptacle, 3-Phase Flanged Grounding Single Screw Mount, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20R NEMA Rating, Industrial Grade, NEMA 4X/12/IP44 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 3.06 x 3.06 x 2.27 in

Standards

UL 498 | Federal Specification W-C-596 | CSA C22.2 No. 42 | NEMA WD1/WD5 | RoHS Compliant

Features

Back wired terminations for ease of installation
#10-32 multiple drive terminal screw (Phillips/slotted/Robertson)
Withstands 2000 VAC minimum dielectric voltage
Clear polycarbonate terminal retainer
Brass blade, #10-32 brass (white finish on neutral screw when used) multiple drive terminal screw, #10-32 brass (green finish) multiple drive ground screw
0.08 in steel nickel plated terminal clamp
Steel, zinc plated mounting screw
Natural white nylon body contact carrier, flanged casing
Nickel plated brass round head mounting screw
0.031 in brass ground contact
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
Terminals identified in accordance with UL 498 and CSA terminal identification
Screw mounting
14 to 8 AWG wire size

Includes

Mounting Screws and Cover

Specifications

Amperage Rating:	20 A
Color:	White
Country of Origin:	US
Dimensions:	3.06 in Dia x 2.27 in L
Enclosure:	NEMA 4X/12/IP44
Grade:	Industrial
Horsepower:	5 hp
Material:	Composite/Thermoplastic
NEMA Rating:	L16-20R
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	480 VAC
