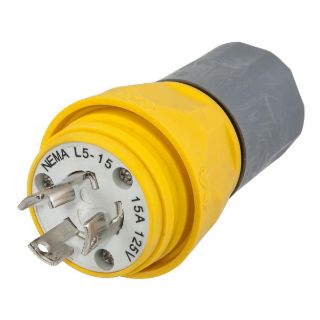

Picture of HBL24W47A HWD
Actual Product May Vary From Image

HBL24W47A HWD

Wiring Device-Kellems Twist-Lock® HBL24W47A Grounding Male Watertight Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL24W47A
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$29.79

Product Details

Brand Name

Wiring Device-Kellems

Type

Grounding Male Watertight

Alternate Supplier #

Grainger - 39AW26

Description

Wiring Device-Kellems Twist-Lock® Locking Plug, Grounding Male Watertight, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA L5-15P, NEMA 3R/3RX/4/4X/6/6P/12/IP66 Enclosure, 3/8 to 5/8 in Cord Dia, -40 to 60 deg C, Screw Terminal, TPE, Yellow, 1.85 in L x 1.85 in W x 3.21 in H

Standards

ANSI Certified | CSA C22.2 No. 42 | Meets NEMA WD-1/WD-6 Requirements | UL 498

Features

  • 2500 VAC minimum withstand dielectric voltage
  • Rated for current interruption per UL498
  • 30 deg maximum at rated current temperature rise
  • All exposed materials are UV stabilized
  • White nylon blade holder
  • Clear polycarbonate terminal retainer material
  • Nickel plated brass blades
  • White nylon core
  • Black elastomeric bushing and cone seal
  • Nylon gotcha ring
  • PBT strain relief nut
  • Nickel plated brass terminal screw
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

Amperage Rating:15 A
Color:Yellow
Cord Diameter:3/8 to 5/8 in
Country of Origin:CN
Dimensions:1.85 in Dia x 3.21 in L
Enclosure:NEMA 3R/3RX/4/4X/6/6P/12/IP66
Grade:Industrial
Horsepower:1/2 hp
Material:Thermoplastic Elastomer
NEMA Rating:NEMA L5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
