Actual Product May Vary From Image

HBL2510ST HWD

Name: HBL2510ST HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2510ST HWD
Price: 32.62 USD
Availability: InStock

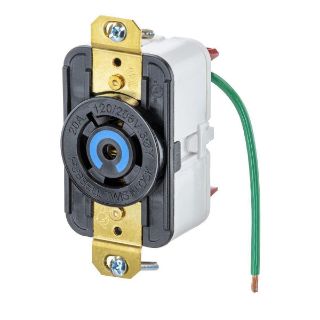

Wiring Device-Kellems Twist-Lock® HBL2510ST 3-Phase Single Flush Locking Receptacle With Spring Termination, 120/208Y VAC, 20 A, 3 Poles, 5 Wires, Black

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL2510ST

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
56	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$32.62

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Single Flush

Description

Wiring Device-Kellems Twist-Lock® Locking Receptacle, 3-Phase Single Flush, 120/208Y VAC, 20 A, 3 Pole, 5 Wires, NEMA L21-20R NEMA Rating, IP20 Enclosure, -40 to 75 deg C, Back Wire Terminal, Nylon, Black, 3.28 in L x 1.7 in W x 1.468 in H Dimensions

Standards

CSA C22.2 File No. 0.17 | CSA C22.2 File No. 42 | UL 498 | UL 94

Features

Faster termination time
No need for screwdriver and torque wrench
Spring termination eliminates strand relaxation
High impact, abuse-resistant nylon face
Face color coding by voltage facilitates locating and mating of proper devices

Specifications

Amperage Rating:	20 A
Color:	Black
Country of Origin:	US
Dimensions:	3.28 in L x 1.7 in W x 1.468 in H
Enclosure:	IP20
Material:	Nylon
NEMA Rating:	NEMA L21-20R
Number of Poles:	3
Number of Wires:	5
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back Wire
Voltage Rating:	120/208Y VAC
