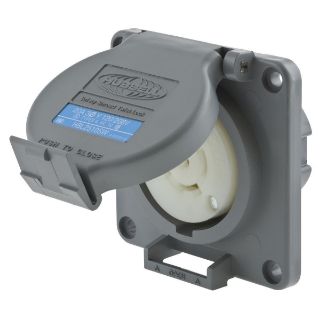

HBL2510SW HWD

Name: HBL2510SW HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2510SW HWD
Price: 167.16 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL2510SW

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$167.16 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Heavy Duty Single Watertight Screw Mount

Alternate Supplier #

Grainger - 4CV12

Description

Wiring Device-Kellems, HBL2510SW, Locking Receptacle, 3-Phase Heavy Duty Single Watertight Screw Mount, Series: HBL®, 120/208 VAC, 20 A, 2 hp, 4 Pole, 5 Wires, L21-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.9 in Dimensions

Standards

UL 498 | CSA C22.2 No. 42 Certified | NEMA WD1/WD5 | RoHS Compliant

Features

Withstands 2000 VAC dielectric voltage
14 to 8 AWG wire size
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
#8-32 brass terminal and ground screw
14 to 8 AWG terminal accommodation
Certified for current interrupting at full rated current interrupting
302/304 stainless steel multi-drive mounting screw
High impact, thermoplastic housing for heavy duty industrial environments
Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
Catalog number and color coded voltage rating are visible even when in use

Specifications

Amperage Rating:	20 A
Color:	Gray/White
Country of Origin:	US
Dimensions:	3.75 x 3.75 x 2.9 in
Grade:	Industrial
Horsepower:	2 hp
Material:	Thermoplastic
NEMA Rating:	L21-20R
Number of Poles:	4
Number of Wires:	5
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	120/208 VAC
