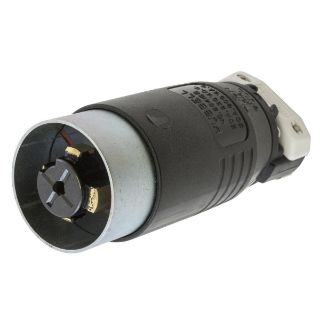

Actual Product May Vary From Image

HBL25415B HWD

Name: HBL25415B HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL25415B HWD
Price: 299.94 USD
Availability: OutOfStock

Wiring Device-Kellems Hubbellock® HBL25415B 3-Phase Grounding Heavy Duty Standard Sized Male Locking Plug, 600 VAC/250 VDC, 30 A, 3 Poles, 5 Wires, Black

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL25415B

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$299.94

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Heavy Duty Standard Sized Male

Alternate Supplier #

Grainger - 3D059

Description

Wiring Device-Kellems Hubbellock® Locking Plug, 3-Phase Grounding Heavy Duty Standard Sized Male, Series: HBL®, 600 VAC/250 VDC, 30 A, 3 Pole, 5 Wires, Industrial Grade, IP30 Enclosure, 0.76 to 1.2 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 2.5 in L x 2.5 in W x 6.56 in H Dimensions

Standards

UL 498 | CSA Certified

Features

Molded-in male contacts are resistant to damage and provide a consistently positive connection
Insulated non-metallic housing enhances safety and abuse resistance
Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability
Auto ejects improperly made connection
Non-NEMA rating

Specifications

Amperage Rating:	30 A
Color:	Black
Cord Diameter:	0.63 to 1.2 in
Country of Origin:	US
Dimensions:	2.5 in L x 2.5 in W x 6.56 in H
Enclosure:	IP30
Grade:	Industrial
Material:	Composite
Number of Poles:	3
Number of Wires:	5
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	600 VAC/250 VDC
