HBL25W47A HWD

Name: HBL25W47A HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL25W47A HWD
Price: 44.12 USD
Availability: InStock

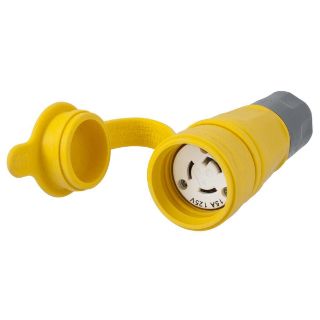

Wiring Device-Kellems Twist-Lock® HBL25W47A Watertight Grounding Heavy Duty Shrouded Watertight Cord Mount Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL25W47A

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
3	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$44.12

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Grounding Heavy Duty Non-Shrouded Standard Watertight

Alternate Supplier #

Grainger - 39AW29

Description

Wiring Device-Kellems Twist-Lock® Locking Connector, Grounding Heavy Duty Shrouded Watertight Cord Mount, Series: Watertight, 125 VAC, 15 A, 2 Pole, 3 Wires, L5-15R NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 3/8 to 5/8 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Elastomer/Composite, Yellow, 1.85 x 1.85 x 4.62 in

Standards

RoHS Compliant | UL 498 | CSA Certified

Features

Grounding style connector
Standard wiring style
Brass terminal and ground screw zinc plated steel cord clamp and body holding screw bronze contact spring, spring binding plate and ground contact, polycarbonate terminal retainer
Smooth body design minimizes collection points simplifying the wash down process
Strain relief nut always seals on the body, minimizing debris collection
Stainless steel hardware and corrosion resistant connection points

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	3/8 to 5/8 in
Country of Origin:	CN
Dimensions:	1.85 in L x 4.62 in W
Enclosure:	IP20
Grade:	Commercial/Industrial
Material:	Elastomer/Composite
NEMA Rating:	L5-15R
Number of Poles:	2
Number of Wires:	3
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
