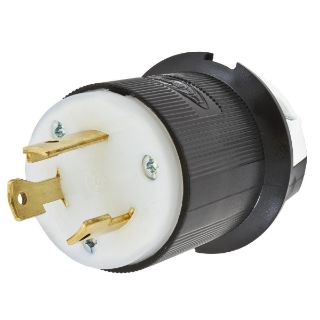

Actual Product May Vary From Image

HBL2611 HWD

Name: HBL2611 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2611 HWD
Price: 44.29 USD
Availability: InStock

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2611 1-Phase Extra Heavy Duty Grounding Standard Sized Male Locking Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, Black/White

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL2611

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
12	1	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$44.29

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Extra Heavy Duty Grounding Standard Sized Male

Alternate Supplier #

Grainger - 4A262

Description

Hubbell® Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. Its these and many other features that set Hubbell® performance above all others.

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Extra Heavy Duty Grounding Standard Sized Male, Series: HBL®, 125 VAC, 30 A, 2 hp, 2 Poles, 3 Wires, NEMA L5-30P, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.26 in L x 2.26 in W x 2.75 in H

Application

Power Connection Applications

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

Tough ribbed nylon housing for secure gripping
Improved terminations include 10 multiple drive screws and thicker 0.08 in clamping nuts
Integral dust shield protects wiring chamber from dust or contaminants
Natural white nylon blade holder, cord clamp
Clear polycarbonate terminal retainer
Brass blade, terminal screw and ground screw
Steel nickel plated terminal clamp
Steel, zinc plated cord clamp screw, body holding screw
Single piece shield/housing eliminates need for separate step at installation
Withstands 2000 VAC minimum dielectric voltage

Specifications

Amperage Rating:	30 A
Color:	Black/White
Cord Diameter:	0.36 to 0.93 in
Country of Origin:	US
Dimensions:	2.26 in L x 2.26 in W x 2.75 in H
Enclosure:	IP20
Grade:	Industrial
Horsepower:	2 hp
Material:	Composite
NEMA Rating:	L5-30P
Number of Poles:	2
Number of Wires:	3
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	125 VAC
