HBL2625 HWD

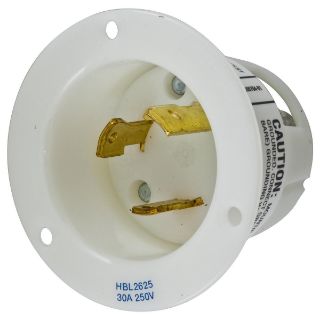

Picture of HBL2625 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL2625
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$60.85 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Extra Heavy Duty Grounding Screw Mount

Alternate Supplier #

Grainger - 3D074

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Flanged Inlet, 1-Phase Extra Heavy Duty Grounding Screw Mount, 250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, L6-30P NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 2.88 x 2.88 x 2.09 in

Application

Extra Heavy Duty Industrial Applications

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

  • Back wired terminations for ease of installation
  • #8-12 multiple drive terminal screw (Phillips/slotted/Robertson)
  • Withstands 2000 VAC minimum dielectric voltage
  • 16 to 8 AWG wire size
  • Clear polycarbonate terminal retainer
  • Brass blade, terminal screw and ground screw
  • 0.08 in steel nickel plated terminal clamp
  • Steel zinc plated body holding screw
  • Natural white nylon body contact carrier, flanged casing
  • Nickel plated brass round head mounting screw
  • Screw mounting
  • 12 to 8 AWG wire size

Includes

Mounting Screws

Specifications

Amperage Rating:30 A
Color:White
Country of Origin:PR
Dimensions:2.88 in Dia x 2.09 in L
Enclosure:IP20
Grade:Industrial
Horsepower:2 hp
Material:Composite
NEMA Rating:L6-30P
Number of Poles:2
Number of Wires:3
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
