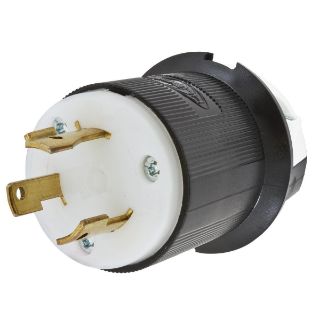

Actual Product May Vary From Image

HBL2641 HWD

Name: HBL2641 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2641 HWD
Price: 45.62 USD
Availability: InStock

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2641 1-Phase Grounding Cord Mount Locking Plug, 480 VAC, 30 A, 2 Poles, 3 Wires, Black/White

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL2641

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$45.62

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Cord Mount

Alternate Supplier #

Grainger - 6C547

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Grounding Cord Mount, 480 VAC, 30 A, 5 hp, 2 Pole, 3 Wires, L8-30P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.26 x 2.26 x 2.75 in

Application

Power Connection Applications

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596

Features

Superior cord grip design protects terminations from excess strain
Clear, funnel shaped wire entry for ease of termination
Integral dust shield protects wiring chamber from dust or contaminants
Natural white nylon blade holder, cord clamp
Clear polycarbonate terminal retainer
Brass blade, terminal screw and ground screw
Steel nickel plated terminal clamp
Steel, zinc plated cord clamp screw, body holding screw
#10-32 brass (Phillips/slotted/Robertson) terminal screw
Withstands 2000 VAC minimum dielectric voltage

Specifications

Amperage Rating:	30 A
Color:	Black/White
Cord Diameter:	0.32 to 0.93 in
Country of Origin:	US
Dimensions:	2.26 in L x 2.26 in W x 2.75 in H
Enclosure:	IP20
Grade:	Industrial
Horsepower:	5 hp
Material:	Nylon
NEMA Rating:	L8-30P
Number of Poles:	2
Number of Wires:	3
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	480 VAC
