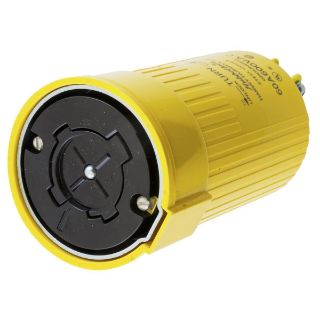

Picture of HBL26418 HWD
Actual Product May Vary From Image

HBL26418 HWD

Wiring Device-Kellems Hubbellock® HBL26418 Female Heavy Duty Insulated Grounding Standard Locking Connector, 600 VAC, 60 A, 3 Poles, 4 Wires, Yellow
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL26418
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$713.93

Product Details

Brand Name

Wiring Device-Kellems

Type

Female Heavy Duty Insulated Grounding Standard

Alternate Supplier #

Grainger - 3D080

Description

Wiring Device-Kellems Hubbellock® Locking Connector, Female Heavy Duty Insulated Grounding Standard, Series: HBL®, 600 VAC, 60 A, 3 Poles, 4 Wires, Industrial Grade, IP30 Enclosure, 0.875 to 1.48 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Yellow, 3.19 in Dia x 6.53 in L

Application

Indoor Applications

Standards

UL 498 | CSA C22.2 No. 42

Features

  • Spring loaded safety shutter contains arcing when mating or unmating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability
  • Insulated, color coded metallic housing enhances safety and abuse resistance
  • Cord mounted
  • Insulated body
  • 6 AWG wire size
  • Thermoplastic polyester interior
  • Non-NEMA rating

Specifications

Amperage Rating:60 A
Color:Yellow
Cord Diameter:0.875 to 1.48 in
Country of Origin:US
Dimensions:3.19 in Dia x 6.53 in L
Enclosure:IP30
Grade:Industrial
Material:Composite
Number of Poles:3
Number of Wires:4
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:600 VAC
