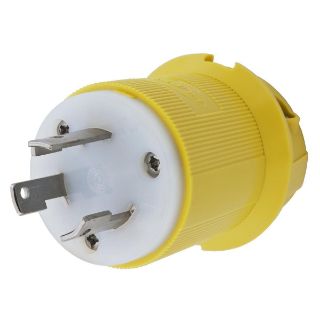

HBL26CM11 HWD

Name: HBL26CM11 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL26CM11 HWD
Price: 42.18 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL26CM11

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$42.18 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Corrosion Resistant Grounding Male Standard Cord Mount

Alternate Supplier #

Grainger - 3D088

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Corrosion Resistant Grounding Male Standard Cord Mount, 125 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, L5-30P NEMA Rating, Marine Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.26 x 2.26 x 2.75 in

Application

Power Connection and Indoor Dry Environment Applications

Standards

RoHS Compliant | CSA C22.2 No. 42 | Federal Specification W-C-596 | UL 498

Features

Nylon blade holder and cord clamp
Clear polycarbonate terminal retainer
Brass blade
0.08 in brass nickel plated terminal clamp
#10-32 bronze (white finish on neutral screw when used) multi-drive terminal screw
#10-32 bronze (green finish) multi-drive ground screw
Stainless steel cord clamp/body holding screws
Molded-in or stamped-on ratings
2000 VAC minimum dielectric withstand voltage
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
12 AWG terminal accommodation
Ribbed nylon housing provides a secure grip and impact and chemical resistance
Superior cord grip design protects terminations from excess strain
Integral dust shield protects wiring chamber from dust or contaminants

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	0.36 to 0.93 in
Country of Origin:	PR
Dimensions:	2.26 in Dia x 2.75 in L
Enclosure:	IP20
Grade:	Marine
Horsepower:	2 hp
Material:	Nylon
NEMA Rating:	L5-30P
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
