HBL26W81 HWD

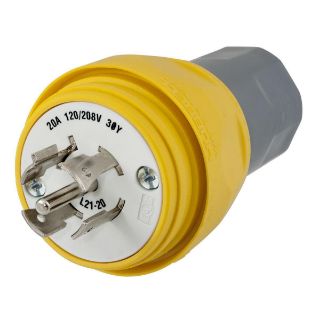

Picture of HBL26W81 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL26W81
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$111.00 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Male Standard Cord Mount Watertight

Alternate Supplier #

Grainger - 39AW97

Description

Wiring Device-Kellems, HBL26W81, Locking Plug, 3-Phase Grounding Male Standard Cord Mount Watertight, 120/208 VAC, 20 A, 4 Pole, 5 Wires, L21-20P NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6P/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 2.51 x 2.51 x 3.96 in Dimensions

Standards

ANSI Specified | UL 498 | CSA C22.2 No. 42 | NEMA WD1/WD6 | RoHS Compliant | NSF Certified | UL94 V-2 Flammability Rating

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strongest strain relief for any watertight device on the market, utilizing the patented GOTCHA™ ring and collapsible bushing combination
  • Nickel plated brass contacts and stainless steel screws provide corrosion resistance for metallic components
  • Impact resistant, smooth, thermoplastic elastomer body helps collection point and aids in easy debris removal
  • Floating cap rings allows for easy removal of dirt and debris
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • Water and dust tight housing
  • The triple bypass seal provides a watertight UL type 4X seal where devices are mated
  • The cone seal at the cable entrance provides protection from water ingress

Specifications

Amperage Rating:20 A
Color:Yellow
Cord Diameter:3/8 to 7/8 in
Country of Origin:PR
Dimensions:2.51 x 2.51 x 3.96 in
Enclosure:NEMA 4/4X/6P/IP65/IP66/IP67
Grade:Commercial/Industrial
Material:Elastomer/Composite
NEMA Rating:L21-20P
Number of Poles:4
Number of Wires:5
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:120/208 VAC
