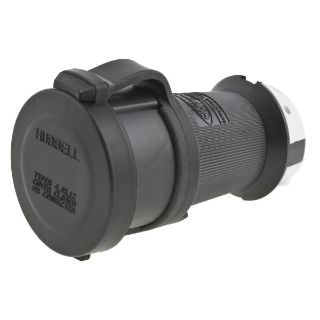

HBL2713SW HWD

Name: HBL2713SW HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2713SW HWD
Price: 193.72 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL2713SW

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$193.72 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Female Grounding Heavy Duty Insulated Shrouded Standard Watertight

Alternate Supplier #

Grainger - 4CV38

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Grounding Heavy Duty Cord Mount Watertight, 125/250 VAC, 30 A, 2 hp, 3 Pole, 4 Wires, L14-30R NEMA Rating, Industrial Grade, IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.75 x 2.75 x 4.4 in

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

UL type 4X environmental seal protects connection while in use
1-piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
Closure cap is included for environmental seal when device is not in use
Superior cord grip design protects terminations from excess strain
Clear polycarbonate terminal retainer
White Valox™ cord clamp
Steel nickel plated terminal clamp
Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
Stainless steel zinc plated cord clamp screw, body holding screws
30 A 10 AWG wire size
Impact modified PBT
Withstands 2000 VAC minimum dielectric voltage
Cord mounted
Insulated body

Specifications

Amperage Rating:	30 A
Color:	Black/White
Cord Diameter:	0.35 to 1.15 in
Country of Origin:	US
Dimensions:	2.75 in Dia x 4.38 in L
Enclosure:	IP66
Grade:	Industrial
Horsepower:	2 hp
Material:	Composite
NEMA Rating:	L14-30R
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	125/250 VAC
