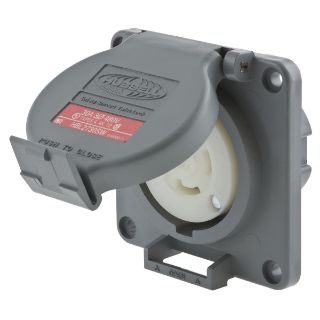

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2730SW 3-Phase Grounding Heavy Duty Shrouded Single Standard Watertight Locking Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Gray/White

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL2730SW

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$157.78

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Heavy Duty Shrouded Single Standard Watertight

Alternate Supplier #

Grainger - 4CV51

Description

Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Receptacle, 3-Phase Grounding Heavy Duty Shrouded Single Standard Watertight, Series: HBL®, 480 VAC, 30 A, 10 hp, 3 Poles, 4 Wires, NEMA L16-30R, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Gray/White, 3.75 in L x 3.75 in W x 2.91 in D

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

UL type 4X environmental seal while in use and when closed
High impact, thermoplastic housing for heavy duty industrial environments
Screw mounting
12 to 8 AWG wire size

Includes

Locking Cover

Specifications

Amperage Rating:	30 A
Color:	Gray/White
Country of Origin:	US
Dimensions:	3.75 in L x 3.75 in W x 2.91 in D
Enclosure:	NEMA 4/4X/12/IP66
Grade:	Industrial
Horsepower:	10 hp
Material:	Composite/Thermoplastic
NEMA Rating:	L16-30R
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	480 VAC
