HBL2733 HWD

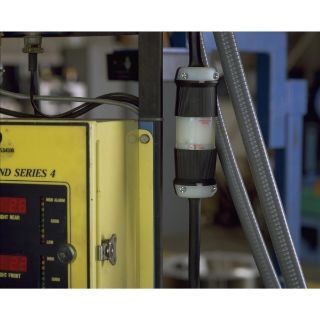

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2733 3-Phase Female Grounding Standard Heavy Duty Insulated Locking Connector, 480 VAC, 30 A, 3 Poles, 4 Wires, Black/White
Manufacturer part number: HBL2733
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
3 4 2
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$125.99

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Grounding Standard Heavy Duty Insulated

Alternate Supplier #

Grainger - 6A660

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, 3-Phase Female Grounding Standard Heavy Duty Insulated, Series: HBL®, 480 VAC, 30 A, 10 hp, 3 Poles, 4 Wires, NEMA L16-30R, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.22 in Dia x 3.84 in L

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Clear polycarbonate terminal retainer
  • Natural white nylon cord clamp material, body contact carrier material
  • Steel nickel plated terminal clamp
  • Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
  • Steel zinc plated cord clamp screw, body holding screw
  • 3-phase
  • 30 A, 10 AWG terminal accommodation
  • Withstands 2000 VAC dielectric voltage

Specifications

Amperage Rating:30 A
Color:Black/White
Cord Diameter:0.35 to 1.15 in
Country of Origin:US
Dimensions:2.22 in Dia x 3.84 in L
Enclosure:IP20
Grade:Industrial
Horsepower:10 hp
Material:Composite
NEMA Rating:L16-30R
Number of Poles:3
Number of Wires:4
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:480 VAC
Customers who bought this item also bought

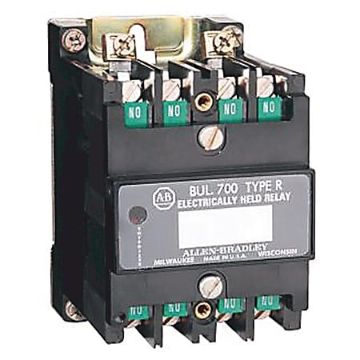

700DCR710Z24 AB
