HBL2740SW HWD

Name: HBL2740SW HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL2740SW HWD
Price: 170.28 USD
Availability: OutOfStock

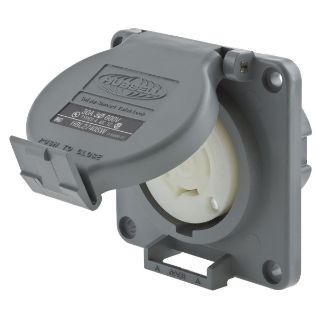

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL2740SW

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$170.28 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Heavy Duty Single Shrouded Standard Watertight

Alternate Supplier #

Grainger - 4CV59

Description

Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Receptacle, 3-Phase Grounding Heavy Duty Single Shrouded Standard Watertight, Series: HBL®, 600 VAC, 30 A, 10 hp, 3 Poles, 4 Wires, NEMA L17-30R, Commercial/Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Gray/White, 3.75 in L x 3.75 in W x 2.91 in H

Standards

UL 498 | Federal Specification W-C-596 | CSA C22.2 No. 42 | NEMA WD1/WD5 | RoHS Compliant

Features

Clear polycarbonate terminal retainer
Steel, nickel plated 0.08 in curved, scalloped terminal clamp
#10-32 brass (white finish on neutral screw when used) multiple drive terminal screw
#10-32 brass (green finish) ground screw
Natural white nylon body contact carrier
0.031 in brass contact spring, 0.031 in brass spring binding plate
Stainless steel 302/304 multi-drive mounting screws
0.031 in brass ground contact, steel rivet
Molded-in or stamped-on ratings, withstands 2000 VAC minimum dielectric voltage
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
30 A 10 AWG wire size
Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
Closed cell neoprene foam flange gasket, closed cell neoprene foam lid gasket
Stainless steel 302/304 cover hinge pin, gray Valox™ housing and flange
UL type 4X environmental seal while in use and when closed
High impact, thermoplastic housing for heavy duty industrial environments
Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
Catalog number and color coded voltage rating are visible even when in use
18000 W
12 to 8 AWG wire size

Specifications

Amperage Rating:	30 A
Color:	Gray/White
Country of Origin:	US
Dimensions:	3.75 in L x 3.75 in W x 2.91 in H
Enclosure:	NEMA 4/4X/12/IP66
Grade:	Commercial/Industrial
Horsepower:	10 hp
Material:	Composite/Thermoplastic
NEMA Rating:	L17-30R
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	600 VAC
