HBL2741SW HWD

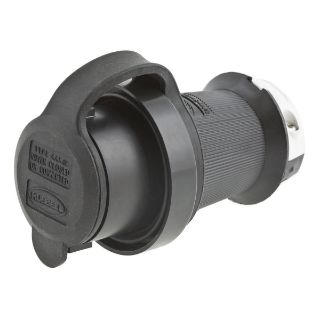

Picture of HBL2741SW HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL2741SW
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$179.66 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Watertight Cord Mount

Alternate Supplier #

Grainger - 4CV61

Description

Wiring Device-Kellems, HBL2741SW, Locking Plug, 3-Phase Grounding Watertight Cord Mount, Series: HBL®, 600 VAC, 30 A, 15 hp, 3 Pole, 4 Wires, L17-30P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.94 x 2.94 x 4.40 in Dimensions

Application

Power Connection Applications

Standards

UL 498 | UL94 Flammability Rating | Federal Specification W-C-596 | CSA C22.2 No. 42/0.6 | RoHS Compliant | NEMA WD1/WD5

Specifications

Amperage Rating:30 A
Color:Black/White
Cord Diameter:0.35 to 1.15 in
Country of Origin:US
Dimensions:2.94 x 2.94 x 4.40 in
Enclosure:NEMA 4/4X/12/IP66
Grade:Industrial
Horsepower:15 hp
Material:Composite
NEMA Rating:L17-30P
Number of Poles:3
Number of Wires:4
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:600 VAC
