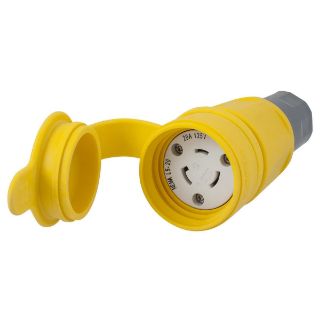

Picture of HBL27W47 HWD
Actual Product May Vary From Image

HBL27W47 HWD

Wiring Device-Kellems Twist-Lock® Elastogrip® HBL27W47 Dust/Watertight Grounding Isolated Insulated Standard Cord Mount Female Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL27W47
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
3 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$71.44

Product Details

Brand Name

Wiring Device-Kellems

Type

Dust/Watertight Grounding Isolated Insulated Standard Cord Mount

Alternate Supplier #

Grainger - 39AW39

Description

Wiring Device-Kellems Twist-Lock® Elastogrip® Female Connector, Dust/Watertight Grounding Isolated Insulated Standard Cord Mount, 125 VAC, 20 A, 2 Pole, 3 Wires, L5-20R NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Elastomer/Composite, Yellow, 2.51 x 2.51 x 5.69 in

Standards

RoHS Compliant | UL 498 | CSA C22.2 File No. 42 | ANSI Specified | NEMA WD1/WD6

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion resistant connection points
  • 3/8 to 7/8 in Dia cord
  • White nylon contact carrier
  • Clear polycarbonate terminal retainer
  • Nickel plated brass contacts
  • White nylon core
  • Black elastomer bushing and cone seal
  • Nylon GOTCHA™ ring
  • PBT strain relief nut
  • Nickel plated brass terminal screw
  • Rated for current interruption per UL 498
  • 2500 VAC dielectric voltage
  • 30 deg C maximum per UL 498 at rated current temperature rise
  • All exposed materials are UV stabilized

Specifications

Amperage Rating:20 A
Color:Yellow
Cord Diameter:3/8 to 7/8 in
Country of Origin:CN
Dimensions:2.51 in Dia x 5.69 in L
Enclosure:NEMA 4/4X/6/6P/12
Grade:Commercial/Industrial
Horsepower:1 hp
Material:Elastomer/Composite
NEMA Rating:L5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
